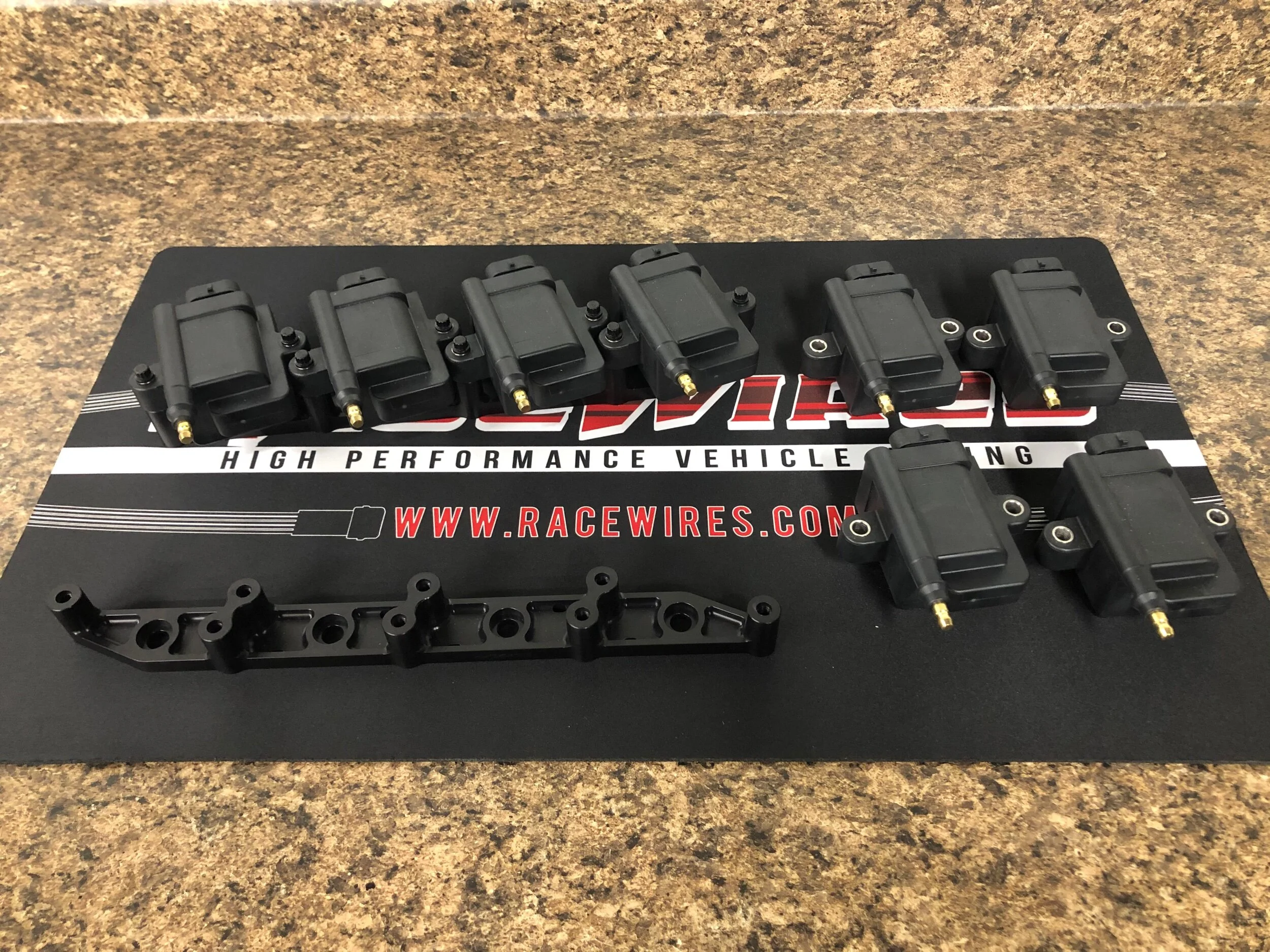

This RACEWires Smart Coil Kit includes:

(8) Hyperaktive IGN1A Smart Coils

(1) Hyperaktive IGN1A Ignition Coil Black Anodized Bracket Set.

Hyperaktive Performance Solutions offers Leading edge technology and parts

If a genuine, high quality inductive “smart coil” is what you’re looking for, our HPS-IGN1A coil is what you need! Capa Kit includes

If a genuine, high quality inductive “smart coil” is what you’re looking for, our HPS-IGN1A coil is what you need! Capable of producing extremely high spark energy (103mJ +) makes it ideal for many high horsepower applications. The coil-near-plug form factor allows it to be remotely mounted away from the cylinder head to promote lower operating temperatures of the coil, improving longevity and performance. The IGN1A is ideally suited for a wide variety of applications, ranging from moderate powered endurance applications through 3000+ horsepower racing motors. It is the ideal combination of high spark energy and long spark duration.

Used often for its reliability and performance, the IGN1A’s built-in igniter allows for a simplified installation and is ideal for use with many ECU’s. No external igniter or CDI is required for this coil to function.

Connection

• A: Coil Trigger (ECU Trigger)

• B: Coil Trigger (ECU 0V)

• C: GND to Cyl Head

• D: Battery GND

• E: Battery POS

Mating connector and terminals included.

Note: When installing the IGN1A, special attention must be made to the quality of the connections due to the immense energy of this coil. The connector is a ‘pull to seat’ connector. The wires must be fed through the connector before termination. The center pin (Terminal C) MUST be grounded to the cylinder head. The coil will not supply full power if it is not grounded properly.
